Home > Main production items > AIRVENT HEAD

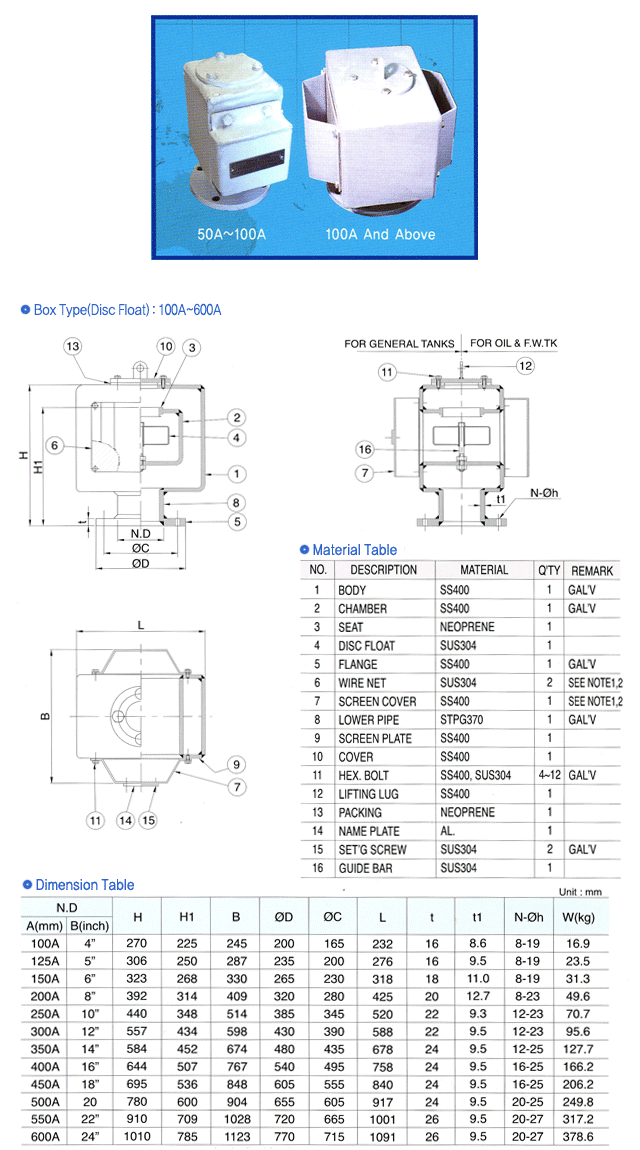

Box TYPE
CASTING TYPE
GOOSE NECK TYPE
DOUBLE CHECK VENT VALVE


Notes : 1. Flame screen with wire mesh#30 to be fitted for lil & F.W.tank and W.B.T of ail carrier or wire
                  mesh #4 for other tanks.
              2. Lower pipe(STPG370)shall be SCH. 80(100A~150A), SCH.40(200A~300A), 10.5t(350A~500A)
              3. Lifting lug to be for 150A and above size
              4.. For oil & F.W system to be fitted with screen cover which upper part is closed.
Notes : 1. Flame sereen with wire mesh #6 to be fitted for General Tanks.(Sereen cover open)
              2. Flame sereen with wire mesh #30 to be fitted for
              3. Flame sereen with wire mesh #30 including W.B.T of oil carrier.
